Austin Healey Wire Wheel Grease Cap Extractor BN1-BJ8

This grease cap extractor tool is made for Austin Healey BN1 to BJ8 models fitted with wire wheels. It screws onto the threaded wire-wheel grease cap and draws it from the deep recess in the front hub, providing controlled removal during hub or wheel-bearing maintenance.

Features

• Designed for deeply recessed grease caps in wire-wheel front hubs
• Fits Austin Healey BN1 to BJ8 models with wire wheels
• Screws directly onto the threaded section of the grease cap

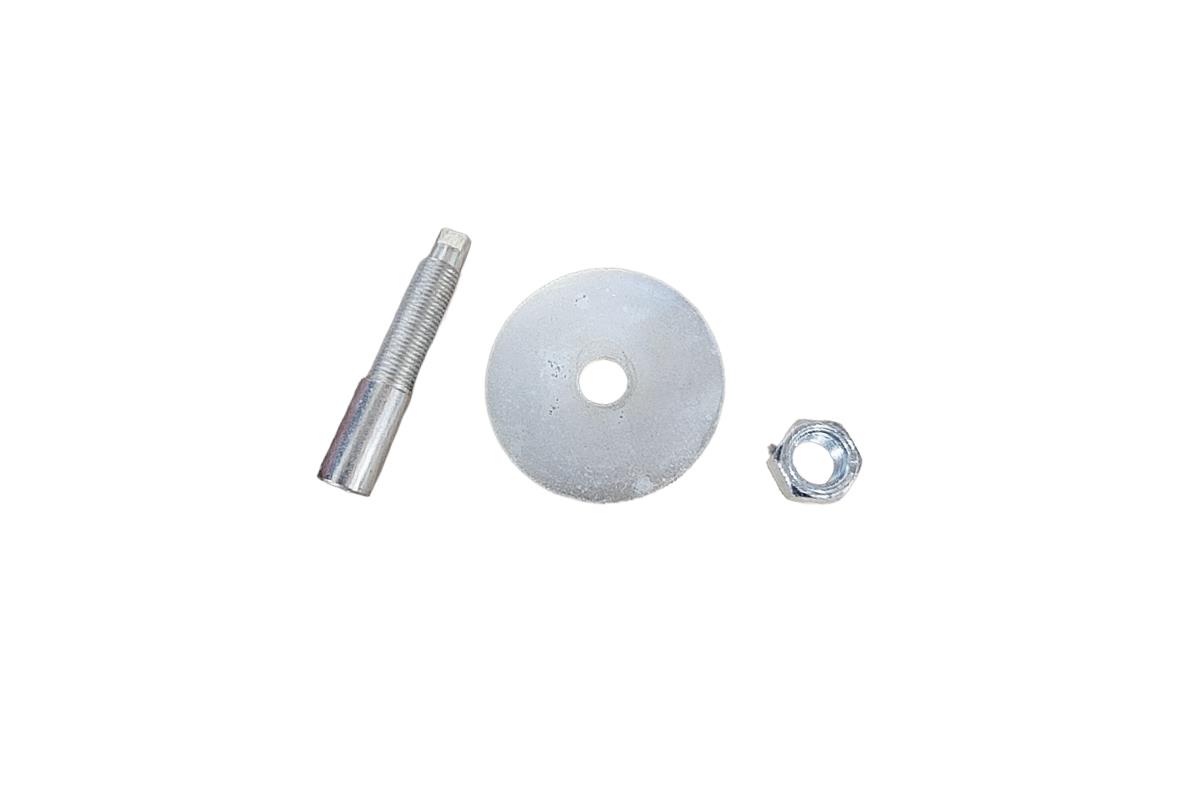

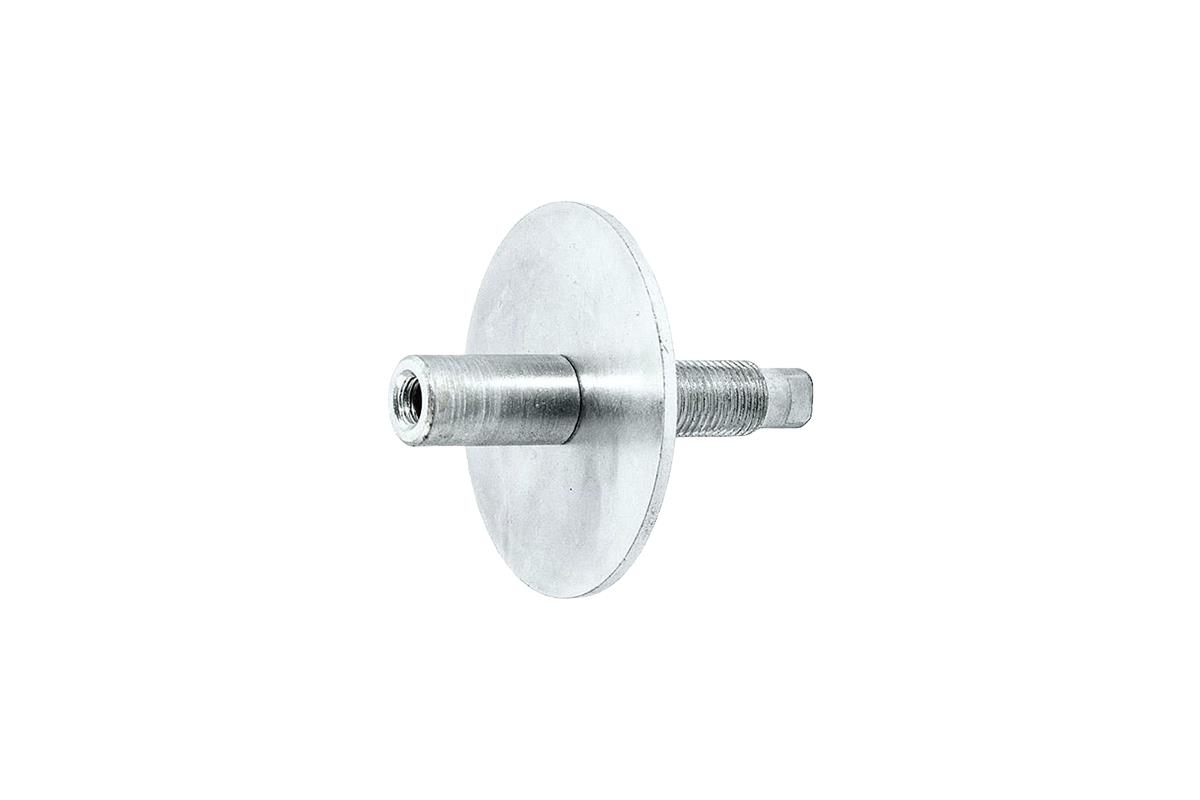

• Supplied as a threaded extractor bar, large washer and nut
• Machined flat allows the extractor bar to be held while tightening the nut
• Provides a steady upward pull without trying to reach into the hub and remove the cap by hand

How the extractor works

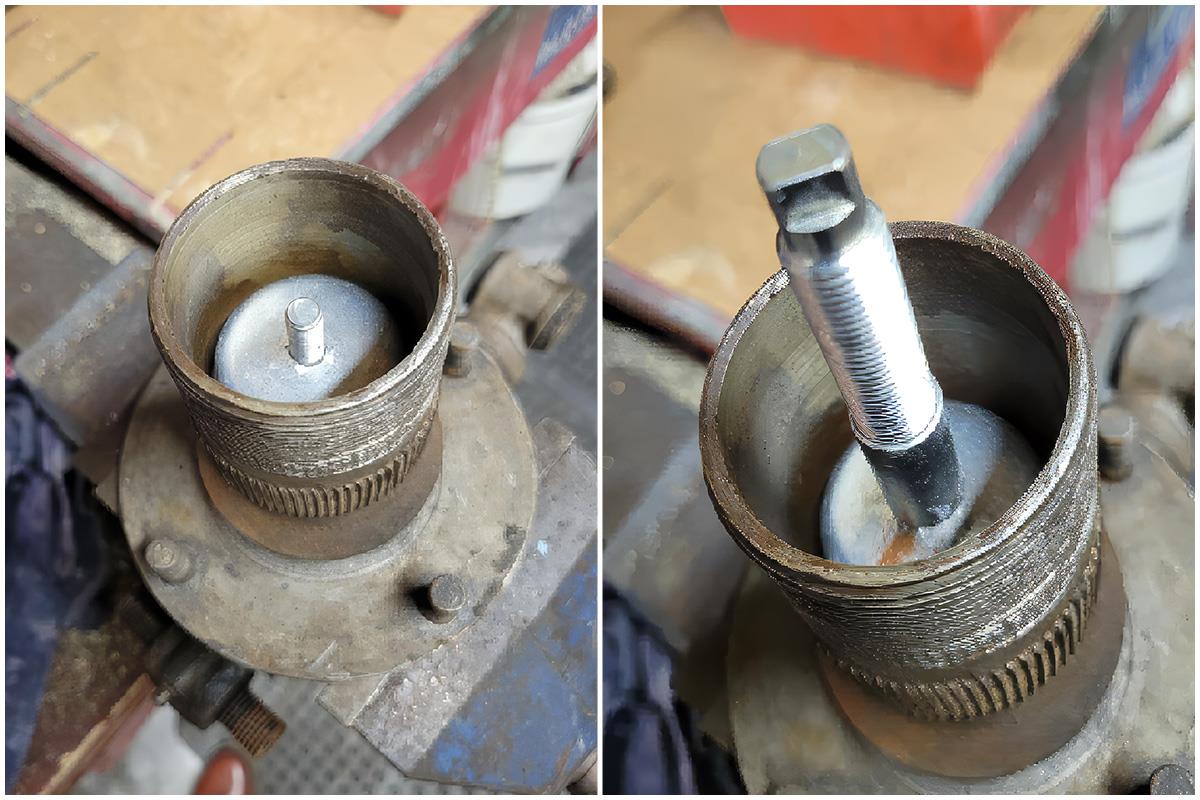

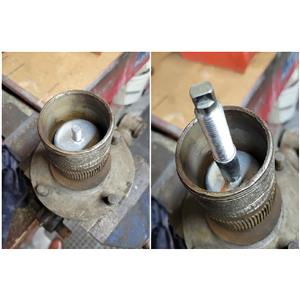

Remove the nut and washer, then screw the extractor bar onto the grease cap. Refit the washer and nut, hold the machined flat with an adjustable spanner and tighten the nut clockwise with a ¾-inch ring spanner to draw the cap upwards.

If corrosion is restricting the cap, clean the upper section of the hub inner wall with a Scotch-Brite pad and suitable release agent before use.

Download Instructions (PDF)

Important use note

This tool is for removing the grease cap only. It cannot be used to refit the cap, which must be carefully tapped back into the hub.

A ¾-inch ring spanner and an adjustable spanner are required. A suitable release agent and Scotch-Brite pad may also be needed if corrosion is restricting the cap.

Vehicle compatibility

• Austin Healey 100 BN1 and BN2
• Austin Healey 100/6 BN4 and BN6
• Austin Healey 3000 BN7, BT7, BJ7 and BJ8
• For cars fitted with wire-wheel hubs only
