A H Aero Screen | 100M, 100S & Sprite MK1

Big Healey
Part no:
WSN107
Product name:
A H Aero Screen | 100M, 100S & Sprite MK1
Additional information:
Description:

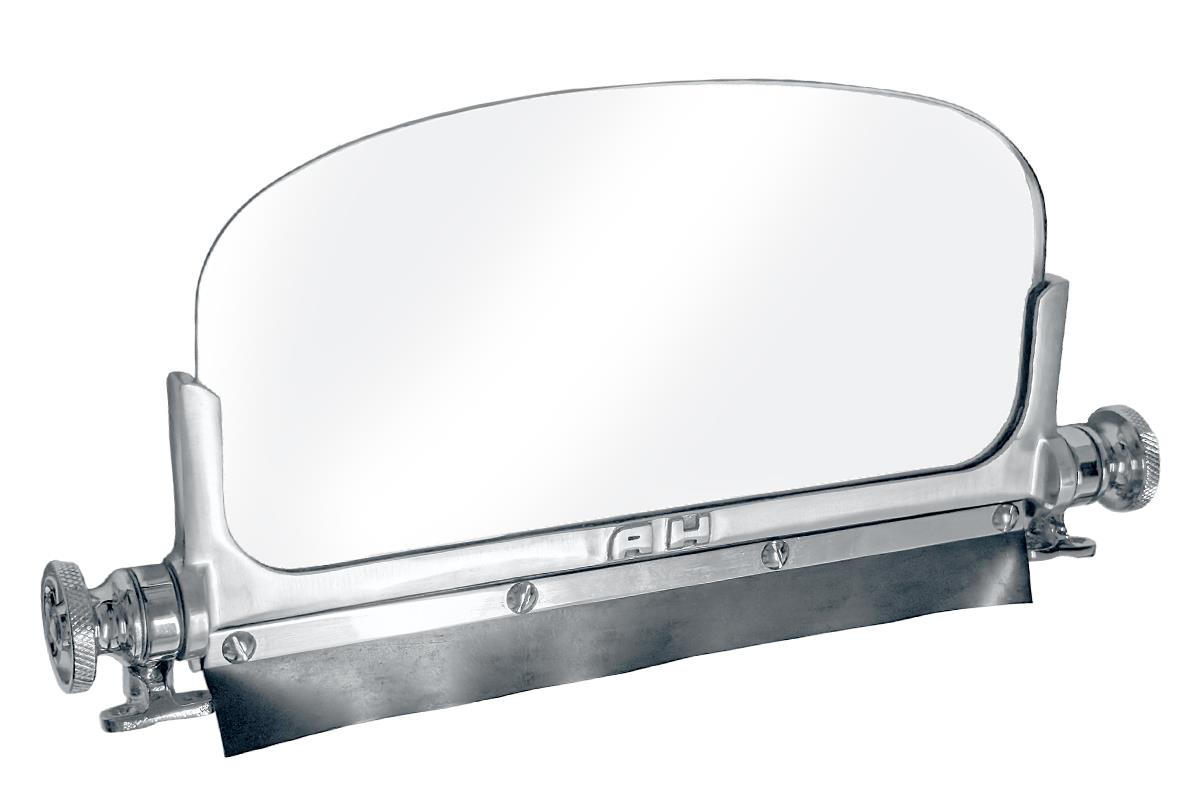

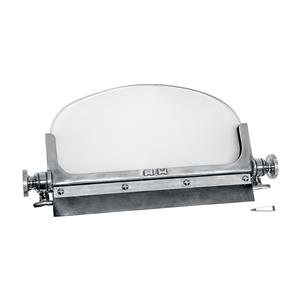

The A H aero screen used on period Healeys is a distinct design. Typical Brooklands-type screens use a different pattern and generally do not reproduce the same raised lettering, glass profile or Healey-specific mounting details. To bring those details back, A H Spares developed this reproduction from a surviving Donald Healey Motor Company screen, using dedicated tooling to reproduce the aluminium frame, raised A H lettering and key geometry. The result is a screen for 100M and 100S applications that is also suitable for the Sprite MK1 Frogeye, supplied individually with its pivots, scuttle brackets and fitting hardware.

A H Aero Screen Details

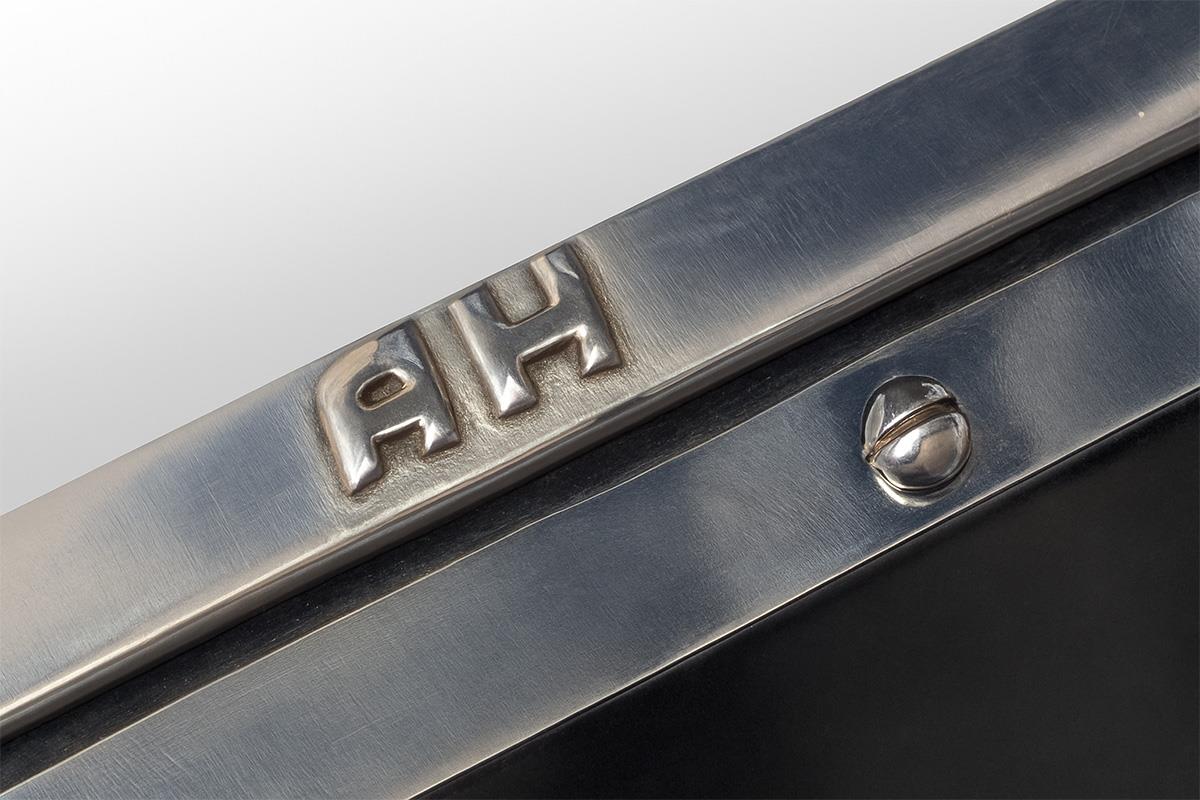

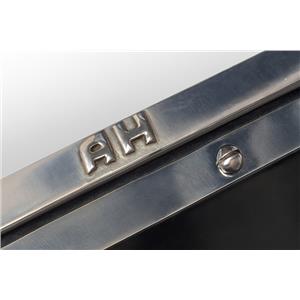

  • Raised A H lettering cast into the aluminium frame
  • Aluminium frame reproduced from the original pattern
  • Laminated glass shaped to the 1950s competition profile
  • Knurled pivots and knobs for rake adjustment
  • Original-style slot-head screws with a chrome-plated finish
  • Spacer on one foot follows the BN1-BN2 scuttle curve on 100M and 100S applications
  • Supplied individually for single-screen or paired installations

Vehicle Application

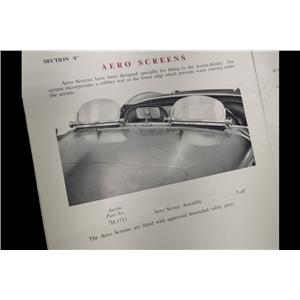

  • Austin Healey 100M - the A H Aero Screen was listed by the Donald Healey Motor Company as an optional part
  • Austin Healey 100S - Austin Healey 100S - suitable for the 100S application
  • Austin Healey Sprite MK1 Frogeye - also offered with an A H Aero Screen as a factory option

For 100M and 100S applications, the screen uses the existing BN1-BN2 scuttle mounting arrangement and supplied hardware.

What Makes This Screen Different?

This is not the same pattern as a general Brooklands-type aero screen. The raised A H lettering, glass profile, knurled adjustment hardware and Healey-specific mounting details reproduce the features of the original Donald Healey Motor Company screen.

Technical Details

  • OE references: 7H1713 / AS100
  • Frame: Aluminium
  • Glass: Laminated
  • Supply: One aero screen with pivots, scuttle brackets and fitting hardware

Single Screen or Pair?

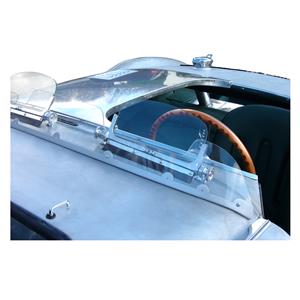

Each aero screen is supplied individually. Fit one on the driver’s side for a single-screen arrangement, or order two where a matching driver and passenger pair is required.

Cape Sport Logo

DHM DIRECT REPLICAS

OE part number:
7H1713 / AS100
Application:
A/R
Quantity per vehicle:
A/R
Items Per Pack:
???
be66043d-7cb7-4b1b-b6b7-1d297ac9ec66
0
Add to wishlist
WL
+
Your Price:
£425.00 Exc VAT
£510.00 Inc VAT
