Explore our extensive range of top-notch carburettor parts for Austin Healey models 100 to 100M, featuring H4 and H6 types. From comprehensive rebuild kits to specific jet needles, we have all the parts you need to maintain and enhance your classic car's performance.

Big Healey

Part No: FCM1001

Application: BN1 - BN2

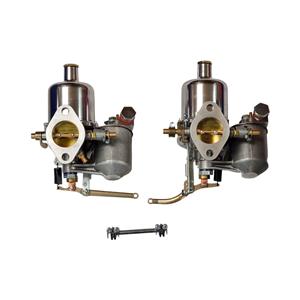

Austin Healey H4 Carburettors - Pair

£1,618.66 Exc VAT

Ref	Part No	Product Name	Application	Qty Per Vehicle	Items Per Pack	Price Exc VAT	Quantity	Add To Basket	Wish List
1	FCM1001	Austin Healey H4 Carburettors - Pair	BN1 - BN2	1	????	£1,618.66		+	+
1	FCM1002	Austin Healey H6 Carburettors - Pair	100M	1	????	£1,624.70		+	+
2	FCM1004	Damper Oil SAE Grade 20	A/R	A/R	????	£8.03		+	+
3	FCM1006	H4 Rebuild Kit - both carburetters	BN1 - BN2	1	????	£172.58		+	+
3	FCM1008	H6 Rebuild Kit - both carburetters	100M	1	????	£172.58		+	+
4	FCM1010	H4&H6 Gasket Set - per carburettor	BN1 - BN2	2	????	£17.14		+	+
6	FCM1012	Carburettor Jet Adjusting Spanners \| USE TOL102	A/R	A/R	????	Superseded		+	+
8	FCM1014	Carburettor Jet Needle & Seat Spanner \| USE TOL102A	A/R	A/R	????	Superseded		+	+
12	FCM1018	Pin Kit - piston lifting	BN1 - BN2	2	????	£7.09		+	+
14	FCM1020	Spring - piston lifting	BN1 - BN2	2	????	£0.88		+	+

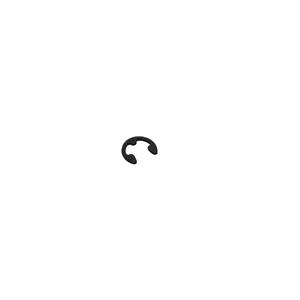

16	FCM1022	Circlip - piston lifting	BN1 - BN2	2	????	£0.71		+	+
18	FCM1026	Union - vacuum advance - rear carburettor	H4 & H6	1	????	£9.59		+	+

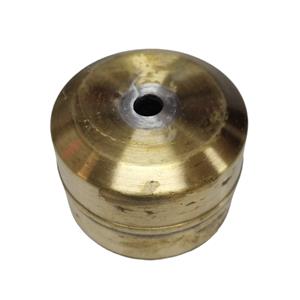

20	FCM1028	Chamber & Piston Assembly	BN1 - BN2	2	????	£450.23		+	+
20	FCM1030	Chamber & Piston Assembly	100M	2	????	£469.18		+	+
22	FCM1032	Screw - needle locking	BN1 - BN2	2	????	£7.86		+	+

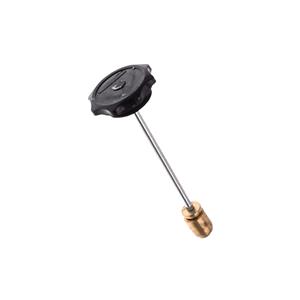

24	FCM1034	Cap & Damper - plastic cap	BN1 - BN2	2	????	£25.57		+	+
24	FCM1036	Cap & Damper - brass cap	BN1 - BN2	2	????	£34.70		+	+

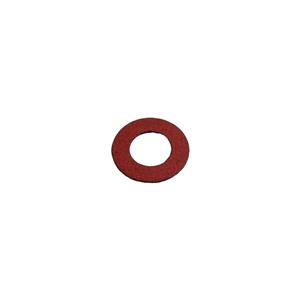

26	FCM1038	Washer - cap - fibre	BN1 - BN2	2	????	£0.60		+	+
28	FCM1040	Spring - piston return - Yellow	BN1 - BN2	2	????	£10.22		+	+
28	FCM1042	Spring - piston return - Red	100M	2	????	£10.24		+	+

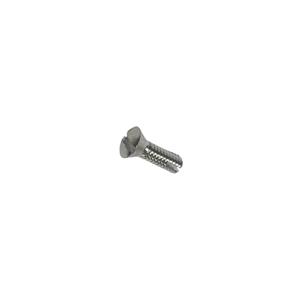

30	FCM1044	Screw - chamber to body	BN1 - BN2	6	????	£0.49		+	+
32	FCM1046	Washer - chamber to body \| USE FAS7452	BN1 - BN2	6	????	Superseded		+	+
34	FCM1048	Jet Assembly - front & rear H4	BN1 - BN2	2	????	£15.90		+	+
34	FCM1050	Jet Assembly - front & rear H6	100M	2	????	£15.90		+	+
36	FCM1052	Jet Bearing Kit	BN1 - BN2	2	????	£32.48		+	+
36	FCM1053	Superdry Jet Bearing Kit	BN1 - BN2	2	????	£51.29		+	+
38	FCM1054	Nut - adjusting - jet bearing	BN1 - BN2	2	????	£3.64		+	+
40	FCM1056	Spring - adjusting nut - jet bearing	BN1 - BN2	2	????	£1.69		+	+
42	FCM1058	Nut - gland sealing - jet bearing	BN1 - BN2	2	????	£5.98		+	+
44	FCM1060	Ring - sealing (brass) - jet bearing	BN1 - BN2	2	????	£6.05		+	+
44	FCM1061	Ring - sealing (aluminium) - jet bearing	BN1 - BN2	2	????	£3.85		+	+
46	FCM1062	Ring - sealing (cork)- jet bearing	BN1 - BN2	2	????	£0.82		+	+
48	FCM1064	Washer - bottom bearing - (copper)	BN1 - BN2	2	????	£1.19		+	+
50	FCM1066	Jet Bearing - bottom	BN1 - BN2	2	????	£6.63		+	+
52	FCM1068	Washer - gland (cork) - jet bearing	BN1 - BN2	2	????	£0.91		+	+
54	FCM1070	Washer - gland (brass) - jet bearing	BN1 - BN2	2	????	£1.59		+	+
56	FCM1072	Spring - gland - jet bearing	BN1 - BN2	2	????	£3.39		+	+
58	FCM1074	Bearing - top - jet bearing	BN1 - BN2	2	????	£9.38		+	+
60	FCM1076	Washer - top bearing (copper) - jet bearing	BN1 - BN2	2	????	£1.00		+	+
62	FCM1078	Needle - jet (Rich) - (H4) QA	BN1 - BN2	2	????	£19.03		+	+
62	FCM1079	Needle - jet (Standard) - (H4) QW	BN1 - BN2	2	????	£19.03		+	+
62	FCM1080	Needle - jet (Lean) - (H4) AT	BN1 - BN2	2	????	£19.03		+	+
62	FCM1081	Needle - jet (Rich) - (H6) OA6	100M	2	????	£19.03		+	+
62	FCM1082	Needle - jet (Standard) - (H6) OA7	100M	2	????	£19.03		+	+
64	FCM1084	Lever - jet - front carburetter	BN1 - BN2	1	????	£68.74		+	+
66	FCM1086	Lever - jet - rear carburetter	BN1 - BN2	1	????	£68.74		+	+
68	FCM1088	Spring - jet lever return	BN1 - BN2	2	????	£6.60		+	+
70	FCM1090	Link Assembly - jet lever	BN1 - BN2	2	????	£25.68		+	+
72	FCM1092	Clevis Pin - link to body	BN1 - BN2	2	????	£1.25		+	+
74	FCM1096	Clevis Pin - link to lever	BN1 - BN2	2	????	£2.99		+	+
76	FCM1094	Split Pin - Clevis Pins	BN1 - BN2	A/R	????	£0.19		+	+

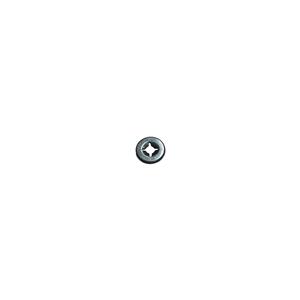

76	FCM1098	Washer - Starlock	BN1 - BN2	2	????	£0.35		+	+
78	FCM1100	Clevis Pin - lever to jet	BN1 - BN2	2	????	£2.65		+	+

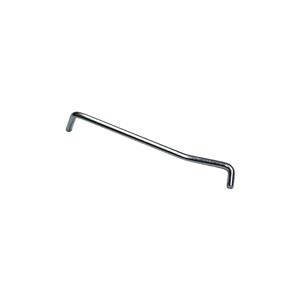

80	FCM1102	Link Rod - tension	BN1 - BN2	1	????	£10.53		+	+
80	FCM1103	Link Rod - tension	100M	1	????	£13.13		+	+
82	FCM1104	Pin - swivel - rear carb jet lever	BN1 - BN2	1	????	£7.29		+	+
84	FCM1106	Washer - starlock - swivel pin	BN1 - BN2	3	????	£0.73		+	+
86	FCM1108	Cam Plate	BN1 - BN2	1	????	£33.41		+	+
88	FCM1110	Bolt - pivot	BN1 - BN2	1	????	£4.41		+	+
90	FCM1112	Washer - thackery - pivot bolt	BN1 - BN2	1	????	£0.35		+	+
92	FCM1114	Spindle/Shaft - throttle	BN1 - BN2	1	????	£16.87		+	+
92	FCM1115	Spindle/Shaft - throttle - oversize	BN1 - BN2	1	????	£28.10		+	+
92	FCM1116	Spindle/Shaft - throttle	100M	2	????	£18.58		+	+
92	FCM1117	Spindle/Shaft - throttle - oversize	100M	2	????	£29.20		+	+

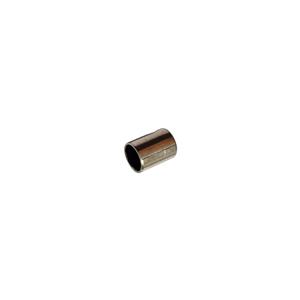

94	FCM1118	Bush - throttle shaft	BN1 - BN2	4	????	£4.03		+	+
96	FCM1120	Lever - throttle stop front carb	BN1 - BN2	1	????	£54.79		+	+
98	FCM1122	Lever - throttle stop rear carb	BN1 - BN2	1	????	£30.44		+	+
100	FCM1124	Screw - stop adjusting - rear carb	BN1 - BN2	2	????	£1.13		+	+
102	FCM1126	Spring - stop adjusting screws - rear carb	BN1 - BN2	2	????	£1.13		+	+
104	FCM1128	Screw - stop adjusting - front carb	BN1 - BN2	1	????	£2.15		+	+
105	FCM1130	Spring - stop adjusting screws - front carb	BN1 - BN2	1	????	£0.94		+	+
106	FCM1132	Pin - tapered	BN1 - BN2	1	????	£1.15		+	+
108	FCM1134	Disc - throttle	BN1 - BN2	2	????	£11.89		+	+
108	FCM1136	Disc - throttle	100M	2	????	£13.83		+	+
110	FCM1138	Screw - throttle disc	BN1 - BN2	4	????	£1.05		+	+
112	FCM1140	Lever - throttle	BN1 - BN2	1	????	£16.34		+	+

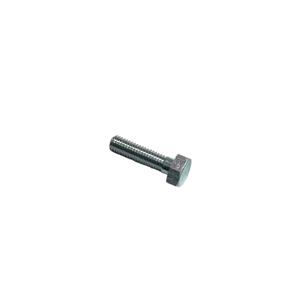

114	FCM1142	Bolt - throttle lever	BN1 - BN2	1	????	£0.85		+	+
116	FCM1144	Washer - throttle lever - spring \| USE FAS7252	BN1 - BN2	1	????	Superseded		+	+
118	FCM1146	Nut - throttle lever bolt	BN1 - BN2	1	????	£0.19		+	+
120	FCM1148	Plate - return spring anchor	BN1 - BN2	2	????	£17.96		+	+
122	FCM1150	Spring - return	BN1 - BN2	2	????	£7.00		+	+
124	FCM1152	Clip - return spring	BN1 - BN2	2	????	£12.17		+	+
126	FCM1154	Bolt - return spring clip	BN1 - BN2	2	????	£0.65		+	+
128	FCM1156	Washer - return spring bolt - plain \| USE FAS7140	BN1 - BN2	6	????	Superseded		+	+
130	FCM1158	Nut - return spring bolt	BN1 - BN2	6	????	£0.23		+	+
132	FCM1160	Chamber - float	BN1 - BN2	2	????	£207.52		+	+
134	FCM1162	Bolt - float chamber to body	BN1 - BN2	2	????	£6.67		+	+
136	FCM1163	Washer - fibre - chamber bolt	BN1 - BN2	4	????	£1.00		+	+
137	FCM1164	Washer - brass - chamber bolt	BN1 - BN2	2	????	£0.96		+	+
138	FCM1166	Washer - fibre - chamber bolt	BN1 - BN2	2	????	£0.94		+	+
140	FCM1168	Float Kit - carburetters-Brass	H & HD	2	????	£32.87		+	+
140	FCM1169	Float Kit - carburetters-Brass-Aftermarket	H & HD	2	????	£15.70		+	+
140	FCM1170	StayUp Float Kit - H & HD carbs - Nitrophyl	H & HD	2	????	£43.87		+	+
142	FCM1172	Lid - float chamber - front & rear carbs	BN1 - BN2	2	????	£85.60		+	+
144	FCM1174	Gasket - float chamber lid	BN1 - BN2	2	????	£0.85		+	+
146	FCM1176	Needle & Valve Seat - plastic & brass float	BN1 - BN2	2	????	£20.20		+	+
148	FCM1177	Lever - hinged - float lid (O.E. Lids)	BN1 - BN2	2	????	£12.95		+	+
148	FCM1178	Lever - hinged - float lid (Replacemet Lids)	BN1 - BN2	2	????	£6.39		+	+
149	FCM1179	Tag - carburettor Identity - plain	BN1 - BN2	2	????	£5.22		+	+
150	FCM1180	Pin - Hinged lever	BN1 - BN2	2	????	£0.73		+	+
152	FCM1182	Nut - float chamber lid - no overflow	BN1 - BN2	2	????	£10.01		+	+
152	FCM1184	Nut - float chamber lid -(brass) with overflow pipe	100M	2	????	£8.75		+	+
154	FCM1186	Cover Cap - brass float lid nut	BN1 - BN2	2	????	£1.46		+	+
156	FCM1188	Washer - aluminium - float lid bolt	BN1 - BN2	2	????	£0.66		+	+
158	FCM1190	Washer - fibre - float lid bolt	100M	2	????	£0.65		+	+

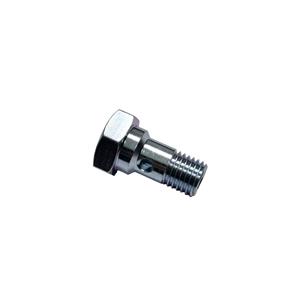

160	FCM1192	Bolt - banjo union	BN1 - BN2	2	????	£3.55		+	+
162	FCM1194	Washer - banjo bolt	BN1 - BN2	4	????	£0.38		+	+
164	FCM1196	Fuel Filter & Spring	BN1 - BN2	2	????	£14.50		+	+
166	FCM1198	Overflow Drain & Vent Pipe	100M	2	????	£12.95		+	+
168	FCM1200	Banjo Union - double 180deg - front	BN1 - BN2	1	????	£33.90		+	+
170	FCM1210	Banjo Union - single - rear	BN1 - BN2	1	????	£21.55		+	+
172	FCM1212	Rod / Spindle - throttle connecting	BN1 - BN2	1	????	£7.00		+	+
172	FCM1214	Rod / Spindle - throttle connecting	100M	1	????	£4.15		+	+
174	FCM1216	Coupling Link Assembly - throttle con rod	BN1 - BN2	2	????	£16.30		+	+
190	FCM1230	Body - front carburetter - H4	BN1 - BN2	1	????	£410.00		+	+
190	FCM1232	Body - front carburetter - H6	100M	1	????	£433.50		+	+
190	FCM1234	Body - rear carburetter - H4	BN1 - BN2	1	????	£410.00		+	+
190	FCM1236	Body - rear carburetter - H6	100M	1	????	£433.50		+	+
195	FCM1240	Piping - carb overflow - (Per Metre)	A/R	A/R	????	£3.52		+	+
