Thermostats for Big Healey, Sprite & Midget

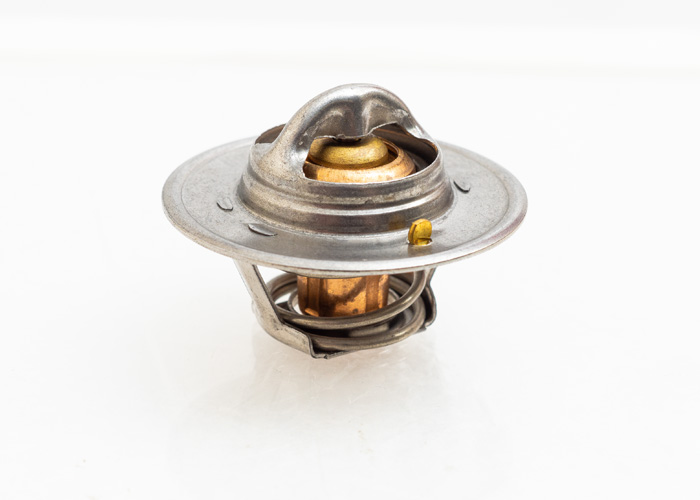

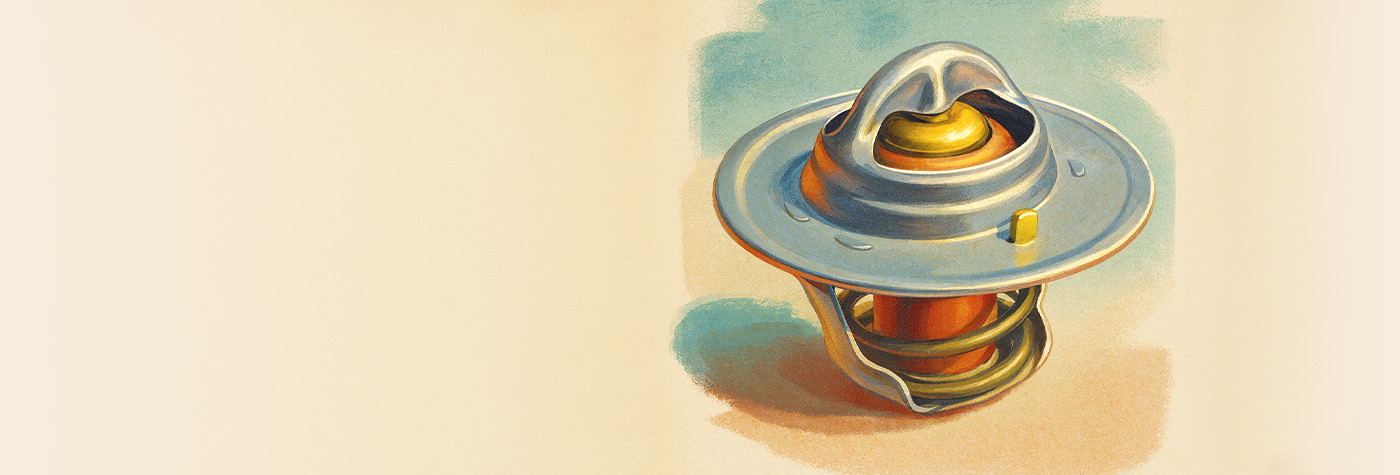

Austin Healey thermostat

Big Healey, Sprite & Midget Thermostat Checks Before Bigger Cooling Work

A faulty thermostat can make a Big Healey, Austin Healey Sprite or MG Midget run hot, run too cold, warm up slowly or behave inconsistently on the temperature gauge. It is a small part, but it controls when coolant is allowed to circulate through the radiator, so it deserves a proper check during cooling-system diagnosis.

That does not mean every hot-running Healey needs a thermostat immediately. Traffic heat, road-speed heat, coolant loss and heat soak can all point to different areas of the cooling system. Start with the symptom, then check the thermostat alongside coolant level, hose condition, radiator efficiency, water pump condition, fan belt tension, coolant condition and fan setup.

Thermostat applications: CHT118, the 74°C thermostat, fits Austin Healey 100 BN1-BN2 models. The same thermostat also fits Austin Healey Sprite MK1-MK4 and MG Midget MK1-MK3. CHT119, the 82°C thermostat, fits Big Healey BN4-BJ8 models.

For a wider symptom-led route, start with the Austin Healey cooling guide. It is usually calmer than replacing parts in alphabetical order, although less entertaining for anyone watching.

  • Fast overheating from cold: check whether the thermostat is stuck closed or coolant circulation is restricted.
  • Slow warm-up: check whether the thermostat is stuck open or missing.
  • Unstable temperature gauge: check for intermittent thermostat operation, air in the system, coolant level or wider circulation issues.
  • Leaks around the housing: inspect the thermostat housing, gasket face and fixings.
  • Persistent hot running: also check radiator efficiency, water pump condition, fan belt tension, ignition timing, carburetter setup and engine oil level/grade.

Big Healey, Sprite & Midget thermostat checks at a glance

How the thermostat controls coolant flow
When the engine is cold, the thermostat stays closed to help the engine warm up. Once the specified temperature is reached, it opens and allows coolant to circulate through the radiator.
Why a stuck-closed thermostat matters
A thermostat stuck closed can stop coolant reaching the radiator properly, causing the engine to overheat quickly.
Why a stuck-open thermostat is not harmless
A thermostat stuck open can make the engine take too long to warm up, which can affect heater performance, efficiency and long-term running condition.
Why the housing deserves a look
A corroded, warped or poorly sealed thermostat housing can cause coolant leaks even when the thermostat itself is doing its job.
Why thermostat checks are only one step
A correct thermostat will not fix a restricted radiator, weak airflow, poor coolant circulation, loose fan belt, poor coolant condition or engine setup fault.
Austin Healey thermostat for cooling system diagnosis

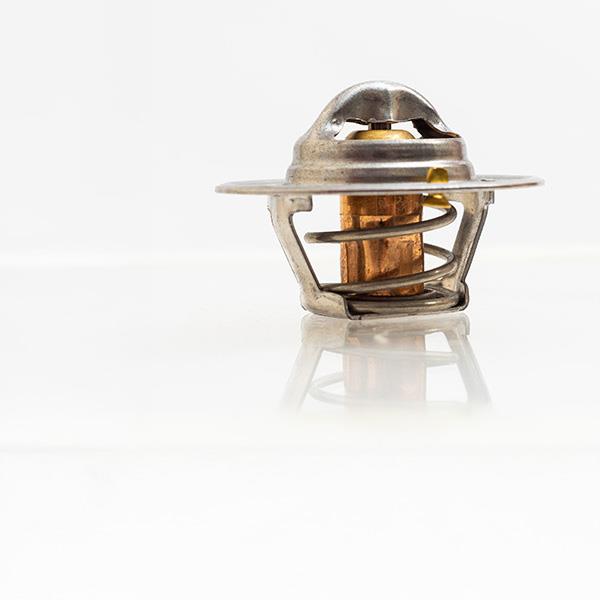

What does an Austin Healey thermostat do?

The thermostat regulates coolant flow between the engine and radiator. When the engine is cold, it stays closed so the engine reaches working temperature. Once it reaches the thermostat’s opening temperature, coolant can circulate through the radiator and the cooling system can begin shedding heat properly.

Think of it as a traffic marshal for coolant. Helpful when it does the job. Less charming when it decides to stand in the road and wave nobody through.

A thermostat is not a performance upgrade by itself. It is a control part. The right thermostat helps the cooling system work as intended, but the rest of the system still needs to be clean, sealed and circulating properly.

Austin Healey thermostat for hot-running diagnosis

Thermostat symptoms worth checking

Thermostats can stick, seize or operate inconsistently with age. A stuck-closed thermostat can cause rapid overheating. A stuck-open thermostat can make the engine slow to warm up and may leave the heater feeling rather optimistic.

Thermostat symptoms can overlap with radiator, hose, cap, coolant, water pump, fan belt and air-lock problems, so avoid treating one symptom as proof. The thermostat is a sensible check, not a courtroom confession.

Thermostat troubleshooting guide
Symptom What it may suggest What to check next
Engine overheats quickly from cold Thermostat stuck closed or coolant not circulating properly Check thermostat operation, coolant level, water pump condition, fan belt and visible restrictions
Engine takes a long time to warm up Thermostat stuck open or incorrect thermostat fitted Check thermostat type, temperature rating and vehicle application
Temperature gauge fluctuates Intermittent thermostat operation, air in the system, coolant level issue or wider circulation fault Check coolant level, bleed/refill procedure, thermostat, radiator cap and hose condition
Heater performance is poor Engine may be running too cool or coolant flow may be poor Check thermostat operation, coolant level, heater valve and hose condition

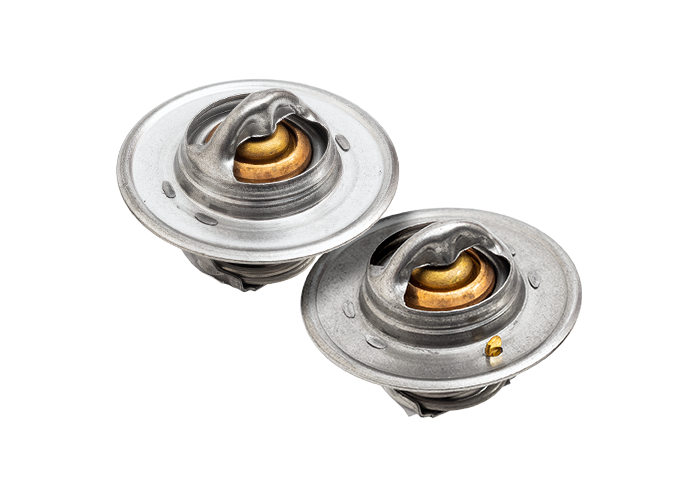

74 degree thermostat for Austin Healey 100, Sprite and MG Midget with 82 degree Big Healey thermostat

Choose the thermostat by model first

Temperature rating matters, but vehicle application comes first. CHT118 is the 74°C thermostat for Austin Healey 100 BN1-BN2. It also fits Austin Healey Sprite MK1-MK4 and MG Midget MK1-MK3. CHT119 is the 82°C thermostat for Big Healey BN4-BJ8.

A lower-temperature thermostat is not a cure for a restricted radiator, poor airflow, slipping fan belt or weak coolant circulation. It simply opens at a lower temperature. If the cooling system cannot shed heat properly, a different thermostat will not suddenly teach it manners.

Big Healey, Sprite & Midget thermostat options

Sprite & Midget owners: CHT118 is the 74°C thermostat for Austin Healey Sprite MK1-MK4 and MG Midget MK1-MK3. View the Sprite & Midget thermostat listing.

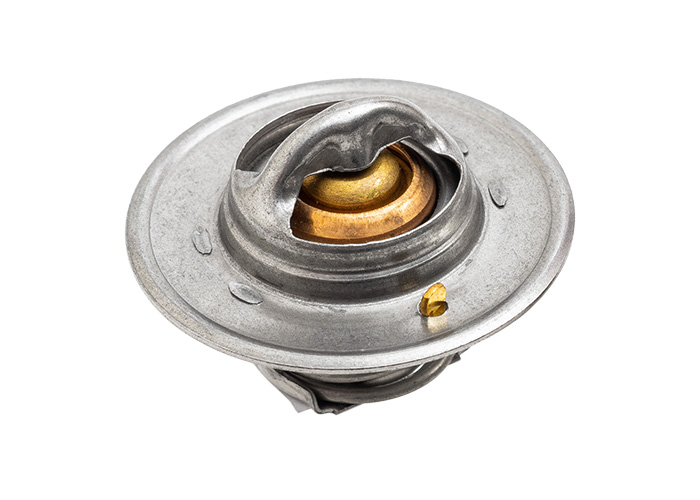

CHT118 74 degree thermostat for Austin Healey 100, Sprite and MG Midget

CHT118

Thermostat - 74°C

Suitable for Austin Healey 100 BN1-BN2, Austin Healey Sprite MK1-MK4 and MG Midget MK1-MK3.

View 74°C Thermostat

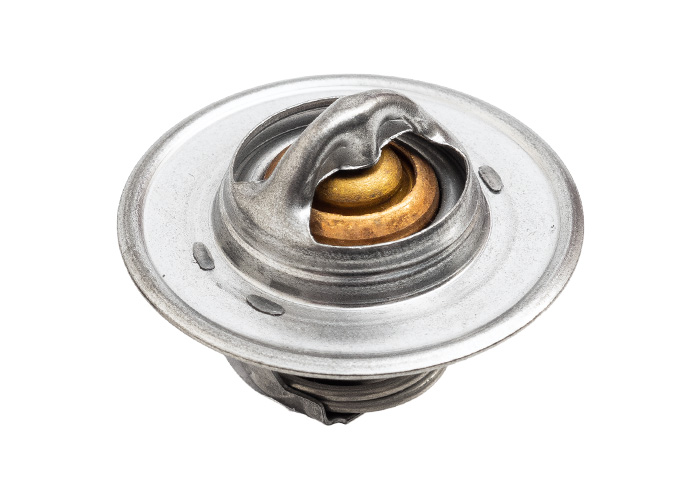

CHT119 82 degree thermostat for Austin Healey 100-Six and 3000 BN4-BJ8

CHT119

Thermostat - 82°C

Suitable for Austin Healey BN4-BJ8 applications.

View 82°C Thermostat

Note: Check the existing cooling setup before ordering, especially where the engine, housing or cooling system has been modified previously.

Check the housing and gasket face while the system is open

When the thermostat is being replaced, inspect the housing for corrosion, pitting, warping or damaged sealing faces. A clean housing and sound gasket face help prevent coolant leaks around the top of the engine.

The housing is not automatically at fault just because the thermostat is being changed, but ignoring a poor sealing surface is a fine way to create another job. Classic cars are quite good at finding work without help.

Replacement thermostat housings are available for Big Healey, Austin Healey Sprite and MG Midget applications. Choose by model, engine size and cooling-system layout, then check the gasket face and fixings before reassembly.

Big Healey thermostat housings

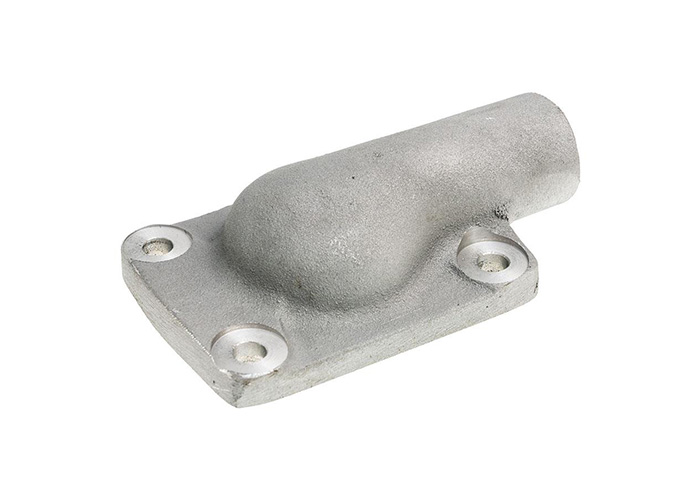

Austin Healey 100 BN1-BN2 thermostat housing CHT120A

CHT120A

Thermostat Housing

Suitable for Austin Healey 100 BN1-BN2 models.

View BN1-BN2 Housing

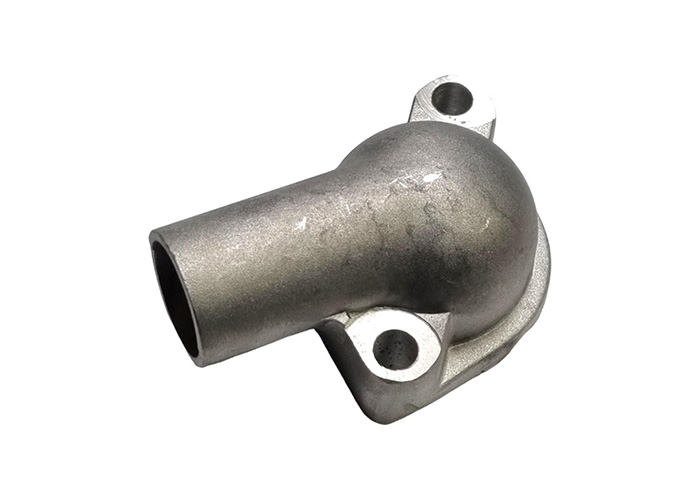

Austin Healey BN4-BJ8 thermostat housing CHT120

CHT120

Thermostat Housing

Suitable for Austin Healey 100-Six and 3000 BN4-BJ8 models.

View BN4-BJ8 Housing

Sprite & Midget thermostat housings

Austin Healey Sprite and MG Midget vertical-flow thermostat housing XCHT123

XCHT123

Vertical-Flow Thermostat Housing

Suitable for 1098cc and 1275cc Austin Healey Sprite and MG Midget cars using a vertical-flow cooling system.

View Vertical-Flow Housing
Austin Healey Sprite and MG Midget cross-flow thermostat housing XCHT123A

XCHT123A

Cross-Flow Thermostat Housing

Suitable for 1275cc Austin Healey Sprite and MG Midget cars using a cross-flow cooling system.

View Cross-Flow Housing

Sprite & Midget owners: The replacement housings shown cover 1098cc and 1275cc applications. Confirm the engine and radiator layout before ordering, particularly where previous work may have altered the original cooling setup.

Why a correct thermostat matters

  • Controls warm-up: helps the engine reach working temperature instead of running cold for too long.
  • Supports stable running temperature: allows coolant to circulate through the radiator when the opening temperature is reached.
  • Helps diagnosis: removes one common cooling-system variable when hot running persists.
  • Protects heater performance: a stuck-open thermostat can leave the engine and heater colder than expected.
  • Pairs with wider cooling checks: thermostat condition should be checked alongside hoses, coolant, radiator efficiency, water pump condition and fan belt setup.

Thermostat checks are one part of the cooling diagnosis. If hot running continues after the thermostat, housing and coolant level have been checked, move through the rest of the system logically.

Cooling Hub

Start here if the symptom still needs separating from the likely cause.

View Cooling Guide

Cooling Hoses

Check hoses, clips and visible staining if coolant loss or pressure issues remain.

View Cooling Hoses

Water Pumps

Check coolant circulation, pump leaks, bearing noise, pulleys and fan belt setup.

View Water Pumps

Coolant & Antifreeze

Reset unknown coolant history with the correct drain, flush and refill route.

View Coolant Options

Thermostat checks keep the diagnosis honest

A thermostat is one of the smaller cooling-system parts, but it has a big say in how the system behaves. If it sticks closed, the engine can overheat quickly. If it sticks open, the engine may struggle to reach working temperature. If the housing does not seal properly, coolant can escape and confuse the diagnosis.

Replace the thermostat when the symptoms point that way, inspect the housing while the system is open, then keep working through the rest of the cooling system if hot running continues. That usually beats blaming the radiator first and asking questions later.

If the right route is not obvious, contact us with the model, current cooling setup and symptoms.

Frequently Asked Questions

Is a 74°C thermostat better than an 82°C thermostat?

Choose by vehicle application first. CHT118 is the 74°C thermostat for Austin Healey 100 BN1-BN2, Austin Healey Sprite MK1-MK4 and MG Midget MK1-MK3. CHT119 is the 82°C thermostat for Big Healey BN4-BJ8. A lower opening temperature will not fix a restricted radiator, poor airflow or weak coolant circulation.
Can a faulty thermostat damage my engine?
Yes. A thermostat stuck closed can restrict coolant flow to the radiator, which may cause the engine to overheat quickly. Check coolant level, circulation, fan belt condition and radiator efficiency as well, because similar symptoms can have more than one cause.
Do I need to refill and bleed the cooling system after changing the thermostat?
Yes. Refill carefully, check for trapped air, run the engine up to temperature, allow it to cool, then recheck the coolant level and inspect for leaks. Follow the workshop manual procedure for the model.
Should the thermostat housing be replaced at the same time?
Not automatically. Inspect the housing for corrosion, pitting, warping and damaged sealing faces. Replace it where the housing condition could cause leaks or prevent a proper seal.
What should I check if the engine still runs hot after replacing the thermostat?
Check radiator efficiency, coolant circulation, hose condition, coolant condition, fan belt tension, water pump condition and fan operation. If the cooling basics are sound, check ignition timing, carburetter setup and engine oil level/grade before replacing more parts.
Which thermostat fits Austin Healey Sprite and MG Midget models?
CHT118, the 74°C thermostat, fits Austin Healey Sprite MK1-MK4 and MG Midget MK1-MK3. Check the existing housing and cooling setup before ordering where previous restoration or modification work may have altered the original arrangement.
