Austin-Healey Sprite & MG Midget Carburettors – MK1 (SU H1)

View

Diagram

Filter

Browse Sprite & MG Midget SU H1 carburettors and parts for MK1 models, including complete units, jets, needles, float chambers, linkages and gaskets. These early SU carburettors are restored to original specification for reliable tuning and authentic performance.

For throttle and choke control fittings, see our Fuel & Engine Controls section.

SU H1 carburettors are specific to MK1 Sprite & Midget models – see our Model Specifications guide.

Sprite

Part No: XFCH1004

Application: A/R

Damper Oil SAE Grade 20

Ref	Part No	Product Name	Application	Qty Per Vehicle	Items Per Pack	Price Exc VAT	Quantity	Add To Basket	Wish List
2	XFCH1004	Damper Oil SAE Grade 20	A/R	A/R	????	Superseded		+	+
3	XFCH1006	Carburetter Rebuild Kit - H1 - Pair	MK1 SPRITE (FROGEYE)	1	????	£189.31		+	+
3	XFCH1007	H1 Service Kit - per Carburetter \| USE FCM1007	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
4	XFCH1008	H1 Gasket Set - per Carburetter	MK1 SPRITE (FROGEYE)	2	????	£17.14		+	+
6	XFCH1010	Carburetter Jet Adjusting Spanners \| USE TOL102	A/R	A/R	????	Superseded		+	+
8	XFCH1012	Carburetter Jet Needle & Seat Spanner	A/R	A/R	????	Superseded		+	+
14	XFCH1018	Pin Kit - piston lifting \| USE FCM1018	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
16	XFCH1020	Spring - piston lifting \| USE FCM1020	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
18	XFCH1022	Circlip - piston lifting \| USE FCM1022	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
22	XFCH1026	Screw - needle locking	MK1 SPRITE (FROGEYE)	2	????	£12.24		+	+
24	XFCH1028	Cap & Damper - plastic cap	MK1 SPRITE (FROGEYE)	2	????	£25.57		+	+
24	XFCH1030	Cap & Damper - brass cap	MK1 SPRITE (FROGEYE)	2	????	£34.70		+	+
28	XFCH1032	Washer - cap - fibre \| USE FCM1038	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
30	XFCH1034	Screw - chamber to body \| USE FCM1044	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
32	XFCH1036	Washer - chamber to body \| USE FCM3044	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
34	XFCH1038	Jet Assembly - front & rear H1 \| USE FCM1048	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
36	XFCH1040	Jet Bearing Kit \| USE FCM1052	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
36	XFCH1042	Superdry Jet Bearing Kit \| USE FCM1053	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
40	XFCH1044	Nut - adjusting - jet bearing \| USE FCM1054	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
42	XFCH1046	Spring - adjusting nut - jet bearing \| USE FCM1056	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
44	XFCH1048	Nut - gland sealing - jet bearing \| USE FCM1058	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+

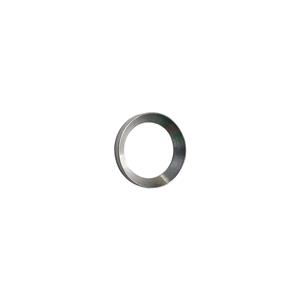

46	XFCH1050	Ring - sealing (aluminium) - jet bearing \| USE FCM1061	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
48	XFCH1052	Ring - sealing (cork)- jet bearing \| USE FCM1062	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
50	XFCH1054	Washer - bottom bearing - (copper) \| USE FCM1064	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
52	XFCH1056	Jet Bearing - bottom \| USE FCM1066	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
54	XFCH1058	Washer - gland (cork) - jet bearing \| USE FCM1068	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
56	XFCH1060	Washer - gland (brass) - jet bearing \| USE FCM1070	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
58	XFCH1062	Spring - gland - jet bearing \| USE FCM1072	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
60	XFCH1064	Bearing - top - jet bearing \| USE FCM1074	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
62	XFCH1066	Washer - top bearing (copper) - jet bearing \| USE FCM1076	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+

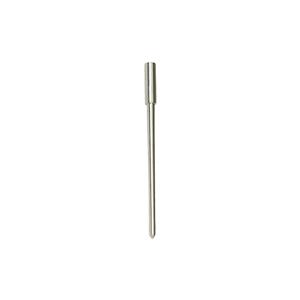

64	XFCH1068	Needle - jet (Rich) - (H1) EB	MK1 SPRITE (FROGEYE)	2	????	£19.03		+	+
64	XFCH1070	Needle - jet (Standard) - (H1) GG	MK1 SPRITE (FROGEYE)	2	????	£19.03		+	+
64	XFCH1072	Needle - jet (Lean) - (H1) MOW	MK1 SPRITE (FROGEYE)	2	????	£19.03		+	+
68	XFCH1076	Spring - jet lever return \| USE FCM1088	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
70	XFCH1078	Pin/Trunnion Assembly - lever to stirrup \| USE CBS130	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
72	XFCH1080	Screw - cable clamp - lever to stirrup	MK1 SPRITE (FROGEYE)	2	????	£2.63		+	+
74	XFCH1082	Link Assembly - jet lever	MK1 SPRITE (FROGEYE)	2	????	£26.16		+	+
76	XFCH1084	Clevis Pin - link to body \| USE FCM1092	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+

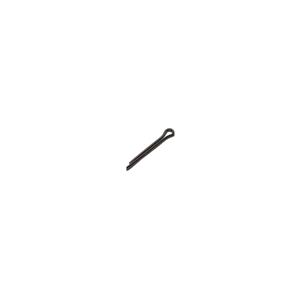

78	XFCH1086	Split Pin - Clevis Pins \| USE FCM1094	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
80	XFCH1088	Clevis Pin - link to lever \| USE FCM1096	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+

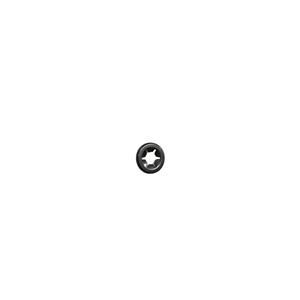

82	XFCH1090	Washer - Starlock \| USE FCM1098	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
84	XFCH1092	Clevis Pin - leaver to jet \| USE FCM1092	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
88	XFCH1096	Split Pin - link to rocking lever \| USE FCM1094	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
90	XFCH1098	Washer - starlock - swivel pin \| USE FCM1106	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
94	XFCH1202	Bolt - pivot for rocking lever \| USE FCM1110	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
96	XFCH1204	Washer - thackery - pivot bolt \| USE FCM1112	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
98	XFCH1206	Washer - aluminium - pivot bolt \| USE FCM2170	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
100	XFCH1208	Spindle - throttle	MK1 SPRITE (FROGEYE)	1	????	£21.13		+	+
102	XFCH1210	Lever - stop - throttle	MK1 SPRITE (FROGEYE)	1	????	£37.21		+	+
104	XFCH1212	Screw - stop adjusting - rear carb \| USE FCM1124	MK1 SPRITE (FROGEYE)	3	????	Superseded		+	+
106	XFCH1214	Spring - stop adjusting screws - rear carb \| USE FCM1126	MK1 SPRITE (FROGEYE)	3	????	Superseded		+	+
108	XFCH1216	Pin - throttle stop lever \| USE FCM1132	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
110	XFCH1218	Plate - return spring anchor	MK1 SPRITE (FROGEYE)	1	????	£8.17		+	+
112	XFCH1220	Spring - return \| USE FCM1150	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
116	XFCH1224	Bolt - return spring clip \| USE FCM1154	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
118	XFCH1226	Washer - plain - return spring bolt \| USE FAS7040	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
120	XFCH1228	Nut - return spring bolt \| USE FCM1158	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
122	XFCH1230	Spindle - throttle \| USE XFCH1208	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
124	XFCH1232	Lever - stop - throttle	MK1 SPRITE (FROGEYE)	1	????	£31.01		+	+
126	XFCH1234	Disc - throttle	MK1 SPRITE (FROGEYE)	2	????	£16.11		+	+
128	XFCH1236	Screw - throttle disc \| USE FCM1138	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
138	XFCH1242	Bolt - chamber to body	MK1 SPRITE (FROGEYE)	2	????	£12.63		+	+
140	XFCH1244	Washer - chamber to body bolt - plain	MK1 SPRITE (FROGEYE)	2	????	£5.39		+	+
142	XFCH1246	Pillar - banjo	MK1 SPRITE (FROGEYE)	2	????	£15.55		+	+
144	XFCH1248	Washer - pillar	MK1 SPRITE (FROGEYE)	2	????	£0.73		+	+
146	XFCH1250	Washer - steel - inner	MK1 SPRITE (FROGEYE)	2	????	£3.57		+	+
148	XFCH1252	Washer - steel - outer	MK1 SPRITE (FROGEYE)	2	????	£2.86		+	+
150	XFCH1254	Locking Nut - pillar	MK1 SPRITE (FROGEYE)	2	????	£0.65		+	+
152	XFCH1256	Grommet - rubber - camber to body	MK1 SPRITE (FROGEYE)	4	????	£2.26		+	+
154	XFCH1258	Float Kit - H1 Carburetter	MK1 SPRITE (FROGEYE)	2	????	£32.87		+	+
158	XFCH1262	Gasket - float chamber lid	MK1 SPRITE (FROGEYE)	2	????	£0.55		+	+
160	XFCH1264	Needle & Seat	MK1 SPRITE (FROGEYE)	2	????	£14.85		+	+
162	XFCH1266	Lever - hinged	MK1 SPRITE (FROGEYE)	2	????	£20.46		+	+
164	XFCH1268	Pin - Hinged lever \| USE FCM1180	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
166	XFCH1270	Nut - float chamber lid -(brass) with overflow pipe \| USE FCM1184	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
168	XFCH1272	Cover Cap - brass float lid nut \| USE FCM1186	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
170	XFCH1274	Washer - aluminium - float lid bolt \| USE FCM1188	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
172	XFCH1276	Overflow Drain & Vent Pipe \| USE FCM1198	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
173	XFCH1277	Piping - carb overflow - (Per Metre) \| USE FCM1240	MK1 SPRITE (FROGEYE)	A/R	????	Superseded		+	+
174	XFCH1278	Washer - fibre - float lid bolt \| USE FCM1190	MK1 SPRITE (FROGEYE)	2	????	Superseded		+	+
176	XFCH1280	Rod - throttle connecting	MK1 SPRITE (FROGEYE)	1	????	£7.14		+	+
178	XFCH1282	Brass Lever - throttle	MK1 SPRITE (FROGEYE)	1	????	£29.22		+	+
180	XFCH1284	Bolt - throttle lever \| USE FCM1142	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
182	XFCH1286	Washer - throttle lever - spring \| USE FAS7252	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
184	XFCH1288	Nut - throttle lever bolt \| USE FCM1146	MK1 SPRITE (FROGEYE)	1	????	Superseded		+	+
186	XFCH1292	Bolt - return spring clip \| USE FCM1154	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
188	XFCH1294	Washer - plain - return spring bolt \| USE FAS7040	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
190	XFCH1296	Nut - return spring bolt \| USE FCM1158	MK1 SPRITE (FROGEYE)	4	????	Superseded		+	+
192	XFCH1298	Coupling Link Assembly - throttle con rod	MK1 SPRITE (FROGEYE)	2	????	£24.50		+	+
